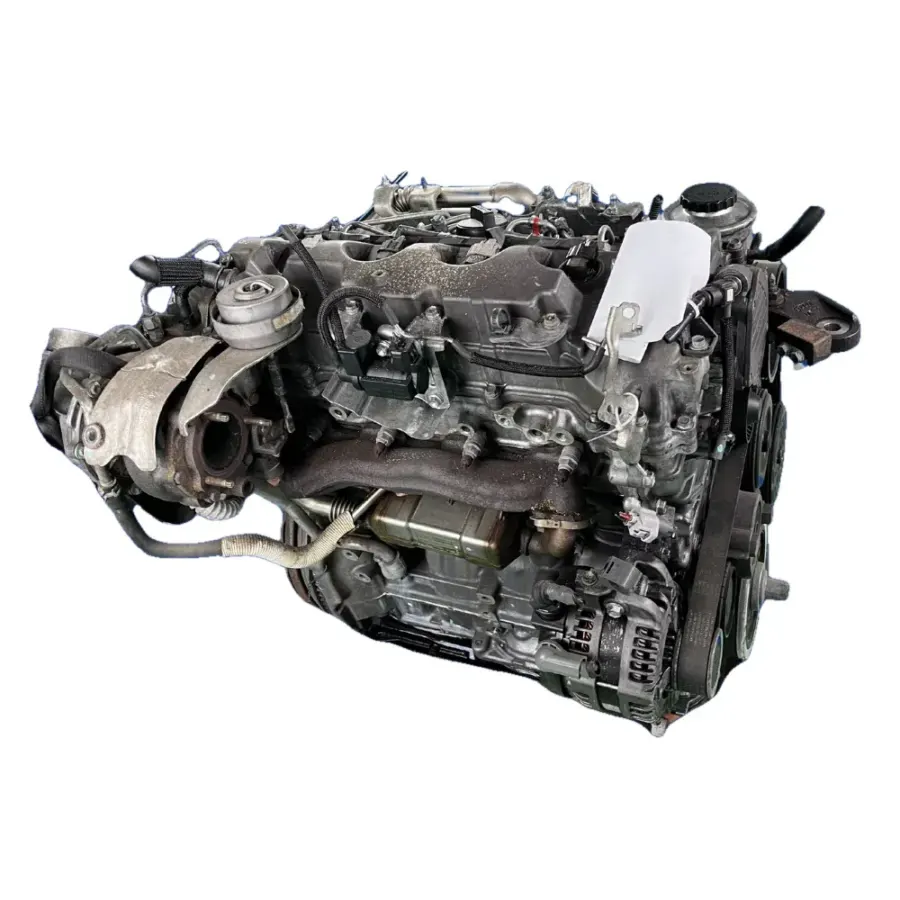

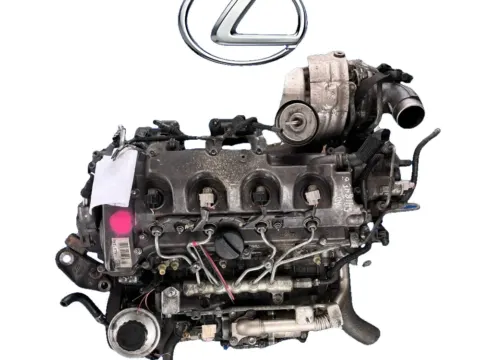

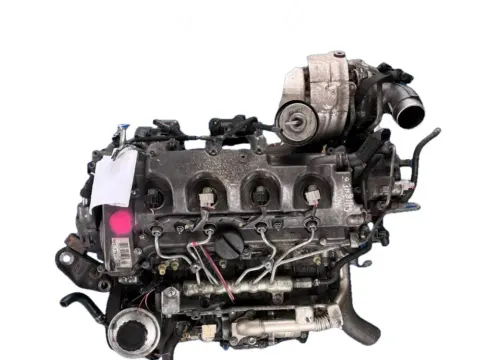

Used Toyota Auris 1AD-FTV 2.0 D-4D Engine

The story of this engine

The 1AD-FTV is the 2.0-litre member of Toyota's AD diesel family, built for its European-focused cars rather than its bakkies. It is a chain-driven, twin-cam four-cylinder with a variable geometry turbo, intercooler and common rail injection, rated at 93 kW. Early engines made 300 Nm on solenoid injectors, while the refreshed version moved to piezo injectors, a lower compression ratio and 310 Nm.

The first-generation Auris got the 1AD from 2007, and the second-generation car kept it from 2013 to 2016. The same engine went into the Corolla, Avensis, Verso and RAV4, so it is familiar to Toyota specialists across South Africa.

The AD engines have a known history of head gasket failures and oil consumption, often linked to carbon build-up from the EGR system clogging the intake and pistons. Before fitting, check for coolant loss, white smoke and pressure in the cooling system, and clean or replace the EGR valve and intake. Injector leak-off tests and turbo shaft play are also worth checking.

Fitted with care and run on good diesel, the 1AD gives strong economy and easy mid-range pull. Send your VIN on WhatsApp and we will confirm whether you need the early or refreshed type.

Compatible vehicles in South Africa

Model	Years	SA variant names
Auris (1st generation)	2007 to 2013	2.0 D-4D
Auris (2nd generation)	2013 to 2016	2.0 D-4D
Corolla (E140)	2007 to 2013	2.0 D-4D

Fitment varies with model year, sensors and mounts. Send your VIN and we will confirm before you pay.

What's included and what's not

On the pallet

Long block / engine as shown in photos
Engine code verified before dispatch
Turbo, injectors and ancillaries only where photos show them (confirm on WhatsApp)

Not included

Gearbox, clutch and dual-mass flywheel
ECU and wiring harness
Fluids, filters and service parts
Fitment labour

Warranty, inspection and nationwide delivery

Warranty

3-month, unlimited-kilometre warranty on internal engine components.
7-day warranty on the turbocharger, where fitted.
Fitment by an RMI-registered mechanic, with new oil, filters, coolant and a new timing belt on belt-driven engines.

Full warranty terms

Inspection

Checked against the 1AD-FTV code before it is listed.
Compression tested and bench-checked where it applies.
Photos and video of the unit on request.

Delivery

Crated and dispatched from Potchefstroom to all nine provinces.
Cross-border to Botswana, Namibia, Zimbabwe, Zambia, Mozambique, Lesotho, Eswatini and Malawi.
Free delivery anywhere in South Africa on orders of R50,000 and above (incl. VAT). Smaller orders and cross-border deliveries are quoted to your town before you pay.
